Directional Couplers

The Directional Coupler designed for FM radio transmitter. This directional coupler builds on Teflon laminate and micros strip technology to enhance ruggedness reliability. This directional coupler provides a DC voltage at the forward and reflected ports. Please provide the best impedance match for this module to prevent power losses and damage. This product requires heat sink for cooling.

All Directional Coupler Models

DCP3000-FM DCP5000-FM
  • DCP3000-FM
  • DCP5000-FM

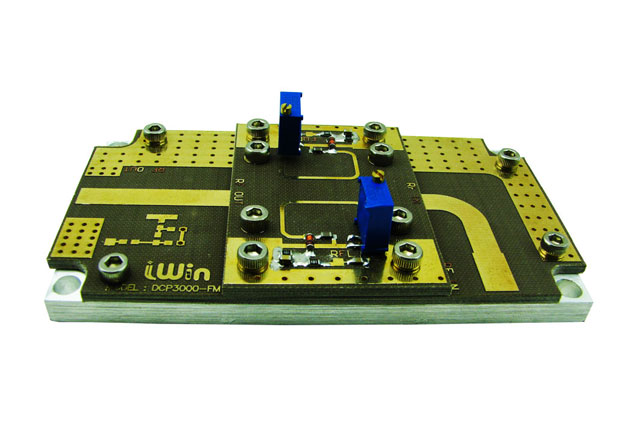

DCP3000-FM Manufacturer: iWin
Product Name: Directional Coupler 3000 W
Model # : DCP3000-FM
Price:
$161.00

Data Sheet
Product Features
Frequency range 87.5 - 108 MHz Power rating 3000 Watts
Input/Output impedance 50 Ohm Forward and reflect coupler
Teflon laminate Gold plate technology
 Technical Specifications  Physical Specifications
 Power rating  3000 W    Dimension  55 X 100 X 25 mm. (L x W x H)
 Input/Output impedance  50 ohm    Weight  0.2 Kg.
 Frequency Range  87.5 ÷ 108 MHz
 Forward DC coupler  7 Vdc@3000 watts(@98MHz)
 Reflect DC coupler  8 Vdc@300 watts(@98MHz)
DCP5000-FM Manufacturer: iWin
Product Name: Directional Coupler 5000 W
Model # : DCP5000-FM
Price:
$196.00

Data Sheet
Product Features
Frequency range 87.5 - 108 MHz Power rating 5000 Watts
Input/Output impedance 50 Ohm Forward and reflect coupler
Teflon laminate Gold plate technology
 Technical Specifications  Physical Specifications
 Power rating  5000 W    Dimension  55 X 100 X 25 mm. (L x W x H)
 Input/Output impedance  50 ohm    Weight  0.2 Kg.
 Frequency Range  87.5 ÷ 108 MHz
 Forward DC coupler  8 Vdc@5000 watts(@98MHz)
 Reflect DC coupler  9 Vdc@300 watts(@98MHz)
