Kit for FM, VHF and UHF receiver. The integrated PLL, VCO, stereo Audio decoder and audio amplifiers can drive an 8 ohm loudspeaker > 1 W. Pre-assembled SMD IC's and pre-printed coils simplify assembly. The kit can be powered by a 15-18 Volt.

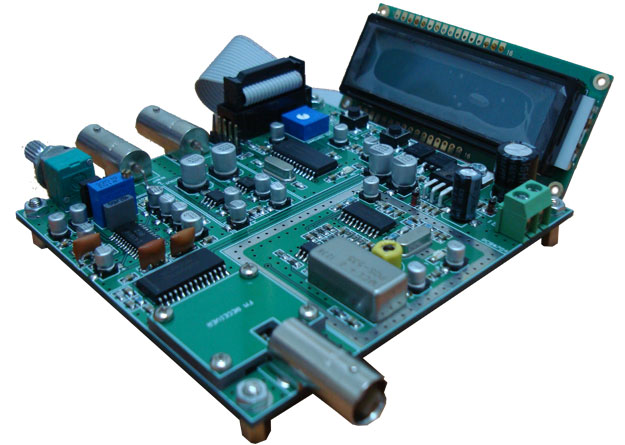

RFM-11031K RFM-11032K RFM-11033K RFM-11034K RFM-11035K RFM-11036K Manufacturer: RF Application Co., Ltd. Product Name: FM Receiver 11031K Model # : RFM-11031K Price: $339.00     Data Sheet   User Guide Download Product Features Frequency range 87.5 - 108 MHz LCD display High grade VCO Unbalanced audio output Mono or Stereo mode selectable Audio Output up to 1watt SMD design      Technical Specifications  Physical and Environmental Specifications  Frequency Range  87.5 - 108 MHz    Operating Temperature  -10°C to +50°C (+14°F to +122°F)  Audio Power output  1 W    Storage Temperature  -40°C to +80°C (-40°F to +176°F)  Audio Output impedance   8 ohm    DC input requirement  13.8-18VDC@300mA  Receiver sensitivity  0.8uV @12dB sinad    Dimension  10.0 X 9.3 X 2.2 cm. (W x L x H)  Frequency step  50 KHz    Weight  0.2 Kg.  Frequency select  Pushed button        UP or DOWN      Frequency stability  +-100Hz       Manufacturer: RF Application Co., Ltd. Product Name: FM Receiver 11032K Model # : RFM-11032K Price: $339.00     Data Sheet   User Guide Download Product Features Frequency range 136 - 174 MHz LCD display High grade VCO Unbalanced audio output Mono or Stereo mode selectable Audio Output up to 1watt SMD design      Technical Specifications  Physical and Environmental Specifications  Frequency Range  136 - 174 MHz    Operating Temperature  -10°C to +50°C (+14°F to +122°F)  Audio Power output  1 W    Storage Temperature  -40°C to +80°C (-40°F to +176°F)  Audio Output impedance   8 ohm    DC input requirement  13.8-18VDC@300mA  Receiver sensitivity  0.8uV @12dB sinad    Dimension  10.0 X 9.3 X 2.2 cm. (W x L x H)  Frequency step  50 KHz    Weight  0.2 Kg.  Frequency select  Pushed button        UP or DOWN      Frequency stability  +-100Hz       Manufacturer: RF Application Co., Ltd. Product Name: FM Receiver 11033K Model # : RFM-11033K Price: $339.00     Data Sheet   User Guide Download Product Features Frequency range 244 - 246 MHz LCD display High grade VCO Unbalanced audio output Mono or Stereo mode selectable Audio Output up to 1watt SMD design      Technical Specifications  Physical and Environmental Specifications  Frequency Range  244 - 246 MHz    Operating Temperature  -10°C to +50°C (+14°F to +122°F)  Audio Power output  1 W    Storage Temperature  -40°C to +80°C (-40°F to +176°F)  Audio Output impedance   8 ohm    DC input requirement  13.8-18VDC@300mA  Receiver sensitivity  0.8uV @12dB sinad    Dimension  10.0 X 9.3 X 2.2 cm. (W x L x H)  Frequency step  50 KHz    Weight  0.2 Kg.  Frequency select  Pushed button        UP or DOWN      Frequency stability  +-100Hz       Manufacturer: RF Application Co., Ltd. Product Name: FM Receiver 11034K Model # : RFM-11034K Price: $339.00     Data Sheet   User Guide Download Product Features Frequency range 300 - 330 MHz LCD display High grade VCO Unbalanced audio output Mono or Stereo mode selectable Audio Output up to 1watt SMD design      Technical Specifications  Physical and Environmental Specifications  Frequency Range  300 - 330 MHz    Operating Temperature  -10°C to +50°C (+14°F to +122°F)  Audio Power output  1 W    Storage Temperature  -40°C to +80°C (-40°F to +176°F)  Audio Output impedance   8 ohm    DC input requirement  13.8-18VDC@300mA  Receiver sensitivity  0.8uV @12dB sinad    Dimension  10.0 X 9.3 X 2.2 cm. (W x L x H)  Frequency step  50 KHz    Weight  0.2 Kg.  Frequency select  Pushed button        UP or DOWN      Frequency stability  +-100Hz       Manufacturer: RF Application Co., Ltd. Product Name: FM Receiver 11035K Model # : RFM-11035K Price: $339.00     Data Sheet   User Guide Download Product Features Frequency range 330 - 360 MHz LCD display High grade VCO Unbalanced audio output Mono or Stereo mode selectable Audio Output up to 1watt SMD design      Technical Specifications  Physical and Environmental Specifications  Frequency Range  330 - 360MHz    Operating Temperature  -10°C to +50°C (+14°F to +122°F)  Audio Power output  1 W    Storage Temperature  -40°C to +80°C (-40°F to +176°F)  Audio Output impedance   8 ohm    DC input requirement  13.8-18VDC@300mA  Receiver sensitivity  0.8uV @12dB sinad    Dimension  10.0 X 9.3 X 2.2 cm. (W x L x H)  Frequency step  50 KHz    Weight  0.2 Kg.  Frequency select  Pushed button        UP or DOWN      Frequency stability  +-100Hz       Manufacturer: RF Application Co., Ltd. Product Name: FM Receiver 11036K Model # : RFM-11036K Price: $339.00     Data Sheet   User Guide Download Product Features Frequency range 400 - 440 MHz LCD display High grade VCO Unbalanced audio output Mono or Stereo mode selectable Audio Output up to 1watt SMD design      Technical Specifications  Physical and Environmental Specifications  Frequency Range  400 - 440 MHz    Operating Temperature  -10°C to +50°C (+14°F to +122°F)  Audio Power output  1 W    Storage Temperature  -40°C to +80°C (-40°F to +176°F)  Audio Output impedance   8 ohm    DC input requirement  13.8-18VDC@300mA  Receiver sensitivity  0.8uV @12dB sinad    Dimension  10.0 X 9.3 X 2.2 cm. (W x L x H)  Frequency step  50 KHz    Weight  0.2 Kg.  Frequency select  Pushed button        UP or DOWN      Frequency stability  +-100Hz
