Stereo Encoder

This stereo encoder is the perfect solution for those who are looking for a great stereo sound with a low cost. This stereo encoder outputs is a very clean and nice sound which is still be cheaper than having each of the equivalent expensive stereo encoder. This stereo encoder uses a Quartz crystal to control the 19 kHz pilot tone, so you will never need to re-adjust it. This is only adjustment required on audio input levels.

All Stereo Encoder Models

  • STE-10012

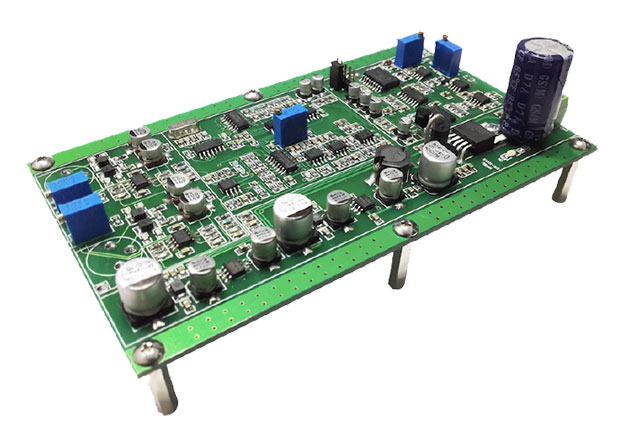

STE-10012 Manufacturer: RF Application Co., Ltd.
Product Name: Stereo Encoder
Model # : STE-10012
Data Sheet
Product Features
Suitable for FM Exciter/Transmitter Balanced audio input
Build in high quality stereo encoder Audio input Level adjustable
Build in 15KHz filter Build in limiter ON/OFF
High quality audio SMD design
MPX level output
 Technical Specifications  Physical and Environmental Specifications
 Audio limiter control Microprocessor   General Stereo Exciter
ModulaPon limiter +- 75 KHz adjustable   Operating Temperature -10°C to +50°C (+14°F to +122°F)
  (Limiter ON)   DC input requirement 13-18 Volts@0.5A
Audio input type Balance (standard solder tab)   Size 8.8 X 15.0 X 5.2 cm. (W x L x H)
 Audio frequency response  10Hz – 15KHz    Weight  0.25 Kg.
 Audio input impedance  10KHz
 Audio input level  -6dB to +12dB
Stereo S/N FM ratio  >65 dB
  (@+- 75 KHz deviaPon)
 Pre emphasis  50us
  (0us or 75us on request)
Channel separation  >45dB
MPX output connector  unbalance
  (standard solder tab)
