The new FM exciter is a complete design and covering entire FM band from 87.5 to 108MHz and UHF band 300- 500 MHz without any tuning. The frequency is programmed by using two push buttons, each push increments or decrements the output frequency by 50 KHz. The frequency can be display form LCD.

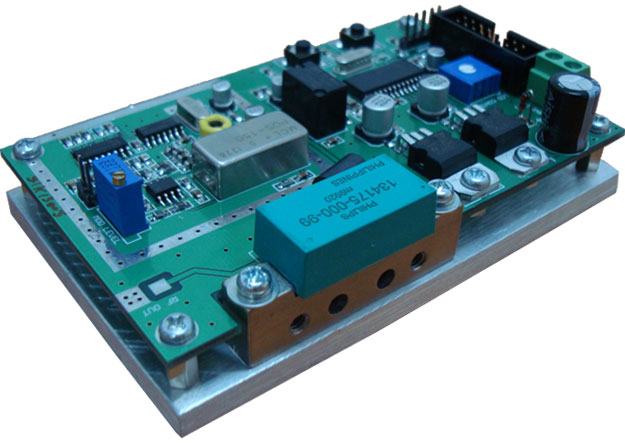

PLL-11031K PLL-11032K PLL-11033K PLL-11034K PLL-11035K PLL-11036K PLL-10805W Manufacturer: RF Application Co., Ltd. Product Name: PLL FM 11031K Model # : PLL-11031K Price: $161.00     Data Sheet   User Guide Download Product Features Frequency range 87.5 - 108 MHz LCD display Broadband no tune Locked detect signal High grade VCO Output up to 1watt  Technical Specifications  Physical and Environmental Specifications  Frequency Range  87.5 - 108 MHz    Operating Temperature  -10°C to +50°C (+14°F to +122°F)  Power output  up to 30dBm    Storage Temperature  -40°C to +80°C (-40°F to +176°F)  Output impedance  50 ohm    DC input requirement  18‐24VDC@1A  Second harmonic  >‐60dBc    Dimension  7.0X 11.0 X 3.0 cm. (W x L x H)  Frequency step  50 KHz    Weight  0.2 Kg.  Frequency select  Pushed button        UP or DOWN      Frequency stability  +-100Hz       Manufacturer: RF Application Co., Ltd. Product Name: PLL FM 11032K Model # : PLL-11032K Price: $171.00     Data Sheet   User Guide Download Product Features Frequency range 136 - 174 MHz LCD display Broadband no tune Locked detect signal High grade VCO Output up to 1watt  Technical Specifications  Physical and Environmental Specifications  Frequency Range  136 - 174 MHz    Operating Temperature  -10°C to +50°C (+14°F to +122°F)  Power output  up to 30dBm    Storage Temperature  -40°C to +80°C (-40°F to +176°F)  Output impedance  50 ohm    DC input requirement  18‐24VDC@1A  Second harmonic  >‐60dBc    Dimension  7.0X 11.0 X 3.0 cm. (W x L x H)  Frequency step  50 KHz    Weight  0.2 Kg.  Frequency select  Pushed button        UP or DOWN      Frequency stability  +-100Hz       Manufacturer: RF Application Co., Ltd. Product Name: PLL FM 11033K Model # : PLL-11033K Price: $171.00     Data Sheet   User Guide Download Product Features Frequency range 244 - 246 MHz LCD display Broadband no tune Locked detect signal High grade VCO Output up to 1watt  Technical Specifications  Physical and Environmental Specifications  Frequency Range  244 - 246 MHz    Operating Temperature  -10°C to +50°C (+14°F to +122°F)  Power output  up to 30dBm    Storage Temperature  -40°C to +80°C (-40°F to +176°F)  Output impedance  50 ohm    DC input requirement  18‐24VDC@1A  Second harmonic  >‐60dBc    Dimension  7.0X 11.0 X 3.0 cm. (W x L x H)  Frequency step  50 KHz    Weight  0.2 Kg.  Frequency select  Pushed button        UP or DOWN      Frequency stability  +-100Hz       Manufacturer: RF Application Co., Ltd. Product Name: PLL FM 11034K Model # : PLL-11034K Price: $171.00     Data Sheet   User Guide Download Product Features Frequency range 300 - 330 MHz LCD display Broadband no tune Locked detect signal High grade VCO Output up to 1watt  Technical Specifications  Physical and Environmental Specifications  Frequency Range  300 - 330 MHz    Operating Temperature  -10°C to +50°C (+14°F to +122°F)  Power output  up to 30dBm    Storage Temperature  -40°C to +80°C (-40°F to +176°F)  Output impedance  50 ohm    DC input requirement  18‐24VDC@1A  Second harmonic  >‐60dBc    Dimension  7.0X 11.0 X 3.0 cm. (W x L x H)  Frequency step  50 KHz    Weight  0.2 Kg.  Frequency select  Pushed button        UP or DOWN      Frequency stability  +-100Hz       Manufacturer: RF Application Co., Ltd. Product Name: PLL FM 11035K Model # : PLL-11035K Price: $171.00     Data Sheet   User Guide Download Product Features Frequency range 330 - 360 MHz LCD display Broadband no tune Locked detect signal High grade VCO Output up to 1watt  Technical Specifications  Physical and Environmental Specifications  Frequency Range  330 - 360 MHz    Operating Temperature  -10°C to +50°C (+14°F to +122°F)  Power output  up to 30dBm    Storage Temperature  -40°C to +80°C (-40°F to +176°F)  Output impedance  50 ohm    DC input requirement  18‐24VDC@1A  Second harmonic  >‐60dBc    Dimension  7.0X 11.0 X 3.0 cm. (W x L x H)  Frequency step  50 KHz    Weight  0.2 Kg.  Frequency select  Pushed button        UP or DOWN      Frequency stability  +-100Hz       Manufacturer: RF Application Co., Ltd. Product Name: PLL FM 11036K Model # : PLL-11036K Price: $171.00     Data Sheet   User Guide Download Product Features Frequency range 400 - 440 MHz LCD display Broadband no tune Locked detect signal High grade VCO Output up to 1watt  Technical Specifications  Physical and Environmental Specifications  Frequency Range  400 - 440 MHz    Operating Temperature  -10°C to +50°C (+14°F to +122°F)  Power output  up to 30dBm    Storage Temperature  -40°C to +80°C (-40°F to +176°F)  Output impedance  50 ohm    DC input requirement  18‐24VDC@1A  Second harmonic  >‐60dBc    Dimension  7.0X 11.0 X 3.0 cm. (W x L x H)  Frequency step  50 KHz    Weight  0.2 Kg.  Frequency select  Pushed button        UP or DOWN      Frequency stability  +-100Hz       Manufacturer: RF Application Co., Ltd. Product Name: PLL FM 10805W Model # : PLL-10805W Price: $178.00     Data Sheet   User Guide Download Product Features Frequency range 87 - 108 MHz LCD display Broadband no tune Locked detect signal High grade VCO Output up to 5watt, adjustable  Technical Specifications  Physical and Environmental Specifications  Frequency Range  87 – 108 MHz    Operating Temperature  -10°C to +50°C (+14°F to +122°F)  Power output  up to 5 watts    Storage Temperature  -40°C to +80°C (-40°F to +176°F)  Output impedance  50 ohm    DC input requirement  12-15VDC@2A (output 5 watt)  Second harmonic  >‐50dBc    Dimension  9.6 X 11.2 X 5.0 cm. (W x L x H)  Frequency step  50 KHz    (excluding LCD panel)  Frequency select  Pushed button    Weight  0.22 Kg.  UP or DOWN      Frequency stability  +-500Hz
