FM Amplifier Modules (High Power)

The High FM amplifier designed for FM radio transmitter (> 1000 watts). This Amplifier incorporates micro strip technology and MOSFET transistor to enhance ruggedness reliability. FM amplifier module completed with heat sink, splitter, combiner, directional coupler and low pass filter. This product requires forced air cooling.

All FM Amplifier Modules (High Power) Models

AB1000-FM AB1500-FM
  • AB1000-FM
  • AB1500-FM

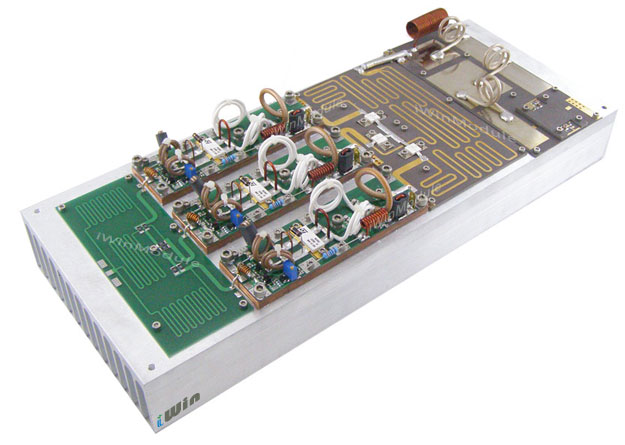

AB1000-FM Manufacturer: iWin
Product Name: FM Amplifier Module 1000 W
Model # : AB1000-FM
Price:
$1,997.00

Data Sheet
Product Features
Frequency range 87.5 - 108 MHz Build in low pass filter
Input/Output impedance 50 Ohm Build in directional coupler
Gain 18 dB Wilkinson splitter & combiner
DC 48 Volts MOSFET SD2942 x 3
Output 1000 Watts
 Technical Specifications  Physical Specifications
 Power output  1000 W    Dimension  458 X 190 X 115 mm. (L x W x H)
 Input/Output impedance  50 ohm    Weight  6.0 Kg.
 Gain  18 dB (typical)
 Power input  16 watts type
 Frequency Range  87.5 ÷ 108 MHz
 Efficiency  75% type (@1000 watts)
 Power requirement  30A@48V (typical 1000W)

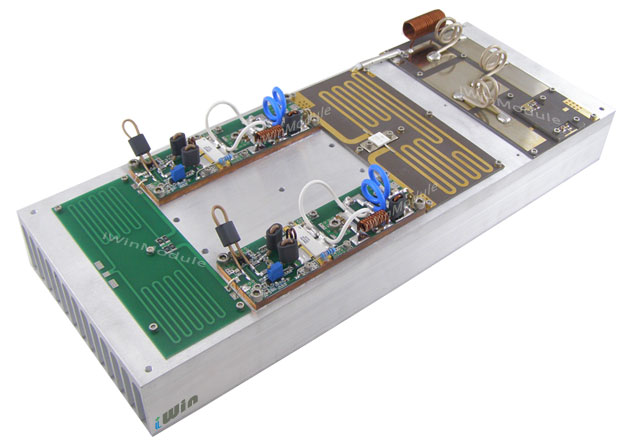

AB1500-FM Manufacturer: iWin
Product Name: FM Amplifier Module 1500 W
Model # : AB1500-FM
Price:
$1,783.00

Data Sheet
Product Features
Frequency range 87.5 - 108 MHz Build in low pass filter
Input/Output impedance 50 Ohm Build in directional coupler
Gain 25 dB Wilkinson splitter & combiner
DC 40 Volts MOSFET BLF178P x 2
Output 1500 Watts
 Technical Specifications  Physical Specifications
 Power output  1500 W    Dimension  458 X 190 X 115 mm. (L x W x H)
 Input/Output impedance  50 ohm    Weight  6.6 Kg.
 Gain  25 dB (typical)
 Power input  8 watts type
 Frequency Range  87.5 ÷ 108 MHz
 Efficiency  75% type (@1500 watts)
 Power requirement  47A@40V (typical 1500W)
