The 2 ways Splitter/Combiner designed for FM radio transmitter. This splitter/combiner builds on FR4 and Teflon laminate and micros strip technology to enhance ruggedness reliability. Our products are design base on Wilkinson splitter/combiner theorem. Please provide the best impedance match for this module to prevent power losses and damage.

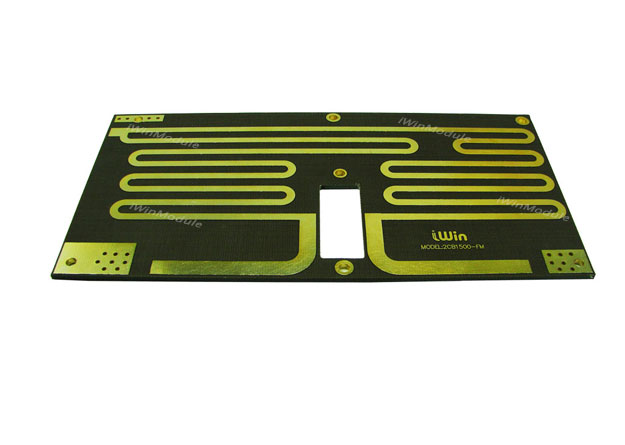

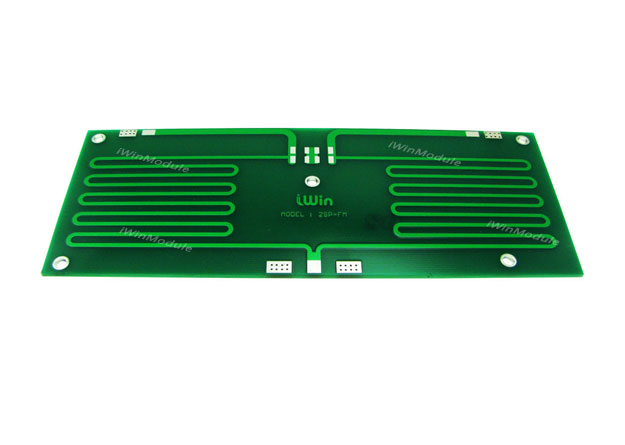

2SP-FM 2SC1000-FM 2CB1500-FM 2CB1600-FM 2CB3000-FM Manufacturer: iWin Product Name: 2 ways Splitter Model # : 2SP-FM Price: $23.00     Data Sheet       Product Features 2 ways splitter FR4 laminate Frequency range 87.5 - 108 MHz Power rating 50 Watts Input/Output impedance 50 Ohm Accept for resistor 100 Ohm x 1 set  Technical Specifications  Physical Specifications  Power rating  50 W max.    Dimension  64 X 165 X 2 mm. (L x W x H)  Input/Output impedance  50 ohm    Weight  0.05 Kg.  Frequency Range  87.5 ÷ 108 MHz        Working temperature  < 50°C (recommend)        Material  FR4, 1.6 mm thickness       Manufacturer: iWin Product Name: 2 ways Splitter/Combiner 1000 W Model # : 2SC1000-FM Price: $78.00     Data Sheet       Product Features 2 ways splitter and combiner Power rating 1000 Watts Frequency range 87.5 - 108 MHz Splitter accept for resistor 100 Ohm x 1 set Input/Output impedance 50 Ohm Combiner accept for resistor 250 W 100 Ohm x 1 set Teflon laminate      Technical Specifications  Physical Specifications  Power rating  1000 W    Dimension  170 X 105 X 2 mm. (L x W x H)  Input/Output impedance  50 ohm    Weight  0.2 Kg.  Frequency Range  87.5 ÷ 108 MHz        Working temperature  < 70°C (recommend)        Material  Teflon, 1.6 mm thickness       Manufacturer: iWin Product Name: 2 ways Combiner 1500 W Model # : 2CB1500-FM Price: $125.00     Data Sheet       Product Features 2 ways combiner Power rating 1500 Watts Frequency range 87.5 - 108 MHz Gold plate technology Input/Output impedance 50 Ohm Accept for resistor 500 W 100 Ohm Teflon laminate      Technical Specifications  Physical Specifications  Power rating  1500 W    Dimension  86 X 175 X 3 mm. (L x W x H)  Input/Output impedance  50 ohm    Weight  0.1 Kg.  Frequency Range  87.5 ÷ 108 MHz        Working temperature  < 70°C (recommend)        Material  Teflon, 2.4 mm thickness       Manufacturer: iWin Product Name: 2 ways Combiner 1600 W Model # : 2CB1600-FM Price: $125.00     Data Sheet       Product Features 2 ways combiner Power rating 1600 Watts Frequency range 87.5 - 108 MHz Gold plate technology Input/Output impedance 50 Ohm Compact size Teflon laminate Accept for resistor 500 W 50 Ohm x 3 set  Technical Specifications  Physical Specifications  Power rating  1600 W    Dimension  114 X 100 X 3 mm. (L x W x H)  Input/Output impedance  50 ohm    Weight  0.1 Kg.  Frequency Range  87.5 ÷ 108 MHz        Working temperature  < 70°C (recommend)        Material  Teflon, 2.4 mm thickness       Manufacturer: iWin Product Name: 2 ways Combiner 3000 W Model # : 2CB3000-FM Price: $214.00     Data Sheet       Product Features 2 ways combiner Power rating 3000 Watts Frequency range 87.5 - 108 MHz Gold plate technology Input/Output impedance 50 Ohm Accept for resistor 800 W 100 Ohm Teflon laminate      Technical Specifications  Physical Specifications  Power rating  3000 W    Dimension  95 X 205 X 5 mm. (L x W x H)  Input/Output impedance  50 ohm    Weight  0.2 Kg.  Frequency Range  87.5 ÷ 108 MHz        Working temperature  <70° (recommend)        Material  Teflon, 3.2 mm thickness
