FM Pallet Modules (Low Power)

The Low FM Pallet designed for FM radio transmitter (< 1000 watts). This pallet incorporates micro strip technology and MOSFET transistor to enhance ruggedness reliability. A pallet is an amplifier module mounted on an aluminum or copper base plate. FM pallet amplifiers are excluding RF connectors or electrical connectors and are ready to be mounted to a heatsink.

All FM Pallet Modules (Low Power) Models

A30-FM A150-FM A300-FM A350-FM A500-FM A900-FM
  • A30-FM
  • A150-FM
  • A300-FM
  • A350-FM
  • A500-FM
  • A900-FM

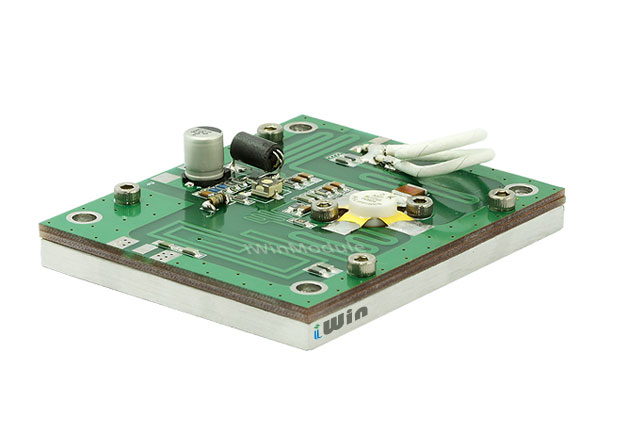

A30-FM Manufacturer: iWin
Product Name: FM Pallet 30 W
Model # : A30-FM
Price:
$232.00

Data Sheet
Product Features
Frequency range 87.5 - 108 MHz DC 28 Volts
Input/Output impedance 50 Ohm Output 30 Watts
Gain 18 dB MOSFET BLF245
 Technical Specifications  Physical Specifications
 Power output  30 W    Dimension  83 X 70 X 25 mm. (L x W x H)
 Input/Output impedance  50 ohm    Weight  0.2 Kg.
 Gain  18 dB (typical)
 Power input  1 watt type
 Frequency Range  87.5 ÷ 108 MHz
 Efficiency  65% type (@30 watts)
 Power requirement  2A@28V (typical 30W)

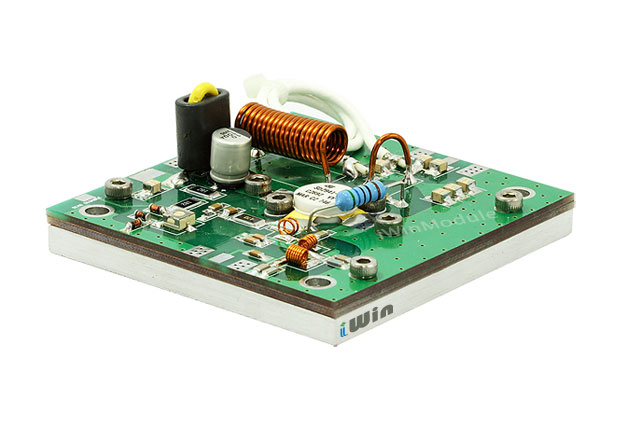

A150-FM Manufacturer: iWin
Product Name: FM Pallet 150 W
Model # : A150-FM
Price:
$268.00

Data Sheet
Product Features
Frequency range 87.5 - 108 MHz DC 48 Volts
Input/Output impedance 50 Ohm Output 150 Watts
Gain 17 dB MOSFET SD2941-10
 Technical Specifications  Physical Specifications
 Power output  39 W    Dimension  77 X 77 X 30 mm. (L x W x H)
 Input/Output impedance  50 ohm    Weight  0.2 Kg.
 Gain  17 dB (typical)
 Power input  4 watts type
 Frequency Range  87.5 ÷ 108 MHz
 Efficiency  75% type (@150 watts)
 Power requirement  5A@48V (typical 150W)
A300-FM Manufacturer: iWin
Product Name: FM Pallet 300 W
Model # : A300-FM
Price:
$428.00

Data Sheet
Product Features
Frequency range 87.5 - 108 MHz DC 48 Volts
Input/Output impedance 48 Ohm Output 300 Watts
Gain 18 dB MOSFET BLF278
 Technical Specifications  Physical Specifications
 Power output  300 W    Dimension  150 X 46 X 35 mm. (L x W x H)
 Input/Output impedance  50 ohm    Weight  0.5 Kg.
 Gain  18 dB (typical)
 Power input  4 watts type
 Frequency Range  87.5 ÷ 108 MHz
 Efficiency  75% type (@300 watts)
 Power requirement  9A@48V (typical 300W)

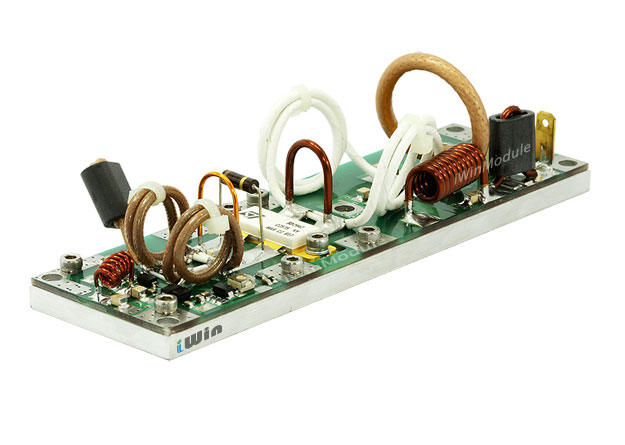

A350-FM Manufacturer: iWin
Product Name: FM Pallet 350 W
Model # : A350-FM
Price:
$499.00

Data Sheet
Product Features
Frequency range 87.5 - 108 MHz DC 48 Volts
Input/Output impedance 50 Ohm Output 350 Watts
Gain 19 dB MOSFET SD2942
 Technical Specifications  Physical Specifications
 Power output  350 W    Dimension  150 X 46 X 35 mm. (L x W x H)
 Input/Output impedance  50 ohm    Weight  0.5 Kg.
 Gain  19 dB (typical)
 Power input  5 watts type
 Frequency Range  87.5 ÷ 108 MHz
 Efficiency  78% type (@350 watts)
 Power requirement  10A428V (typical 350W)

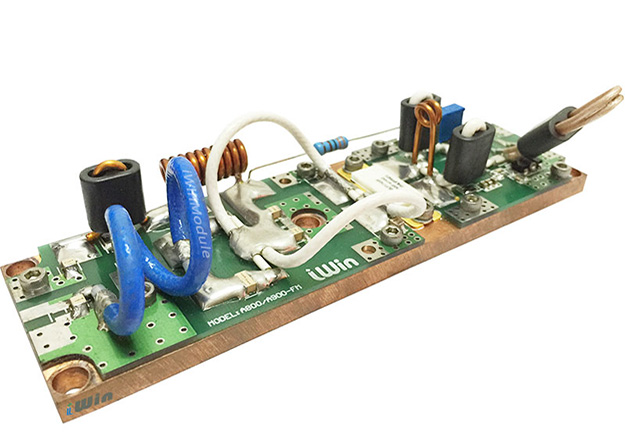

A500-FM Manufacturer: iWin
Product Name: FM Pallet 500 W
Model # : A500-FM
Price:
$535.00

Data Sheet
Product Features
Frequency range 87.5 - 108 MHz DC 44 Volts
Input/Output impedance 50 Ohm Output 500 Watts
Gain 25 dB MOSFET BLF174XR
 Technical Specifications  Physical Specifications
 Power output  500 W    Dimension  150 x 46 x 35 mm. (L x W x H)
 Input/Output impedance  50 ohm    Weight  0.5 Kg.
 Gain  25 dB (typical)
 Power input  1.7 watts type
 Frequency Range  87.5 ÷ 108 MHz
 Efficiency  85% type (@500 watts)
 Power requirement 17A@44V (typical 500W)

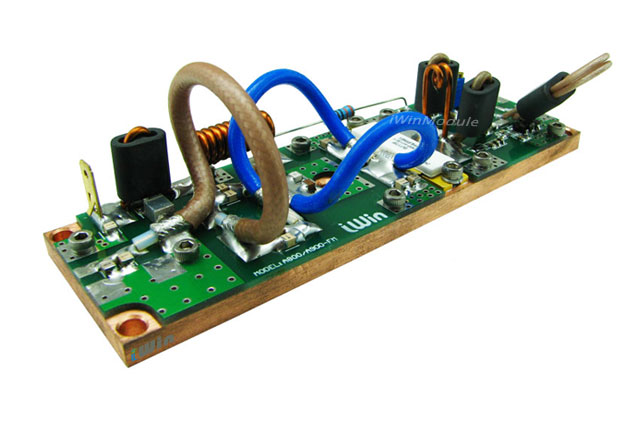

A900-FM Manufacturer: iWin
Product Name: FM Pallet 900 W
Model # : A900-FM
Price:
$678.00

Data Sheet
Product Features
Frequency range 87.5 - 108 MHz DC 40 Volts
Input/Output impedance 50 Ohm Output 900 Watts
Gain 25 dB MOSFET BLF178P
 Technical Specifications  Physical Specifications
 Power output  900 W    Dimension  150 X 46 X 35 mm. (L x W x H)
 Input/Output impedance  50 ohm    Weight  0.5 Kg.
 Gain  25 dB (typical)
 Power input  5 watts type
 Frequency Range  87.5 ÷ 108 MHz
 Efficiency  83% type (@900 watts)
 Power requirement  27A@40V (typical 900W)
