RF Application Co., Ltd. provides sensibly priced RF Wattmeter and monitoring equipment for Amateur Radio and FM broadcast transmitter. This product can be sensors from 50MHz to 150MHz. Also they are available for every application, and many sensors can be monitored on the LCD display. Connection to a PC allows simultaneous viewing of the sensors.

All Meter Models

LCD-5000 DWT-1000 DWT-1500
  • LCD-5000
  • DWT-1000
  • DWT-1500

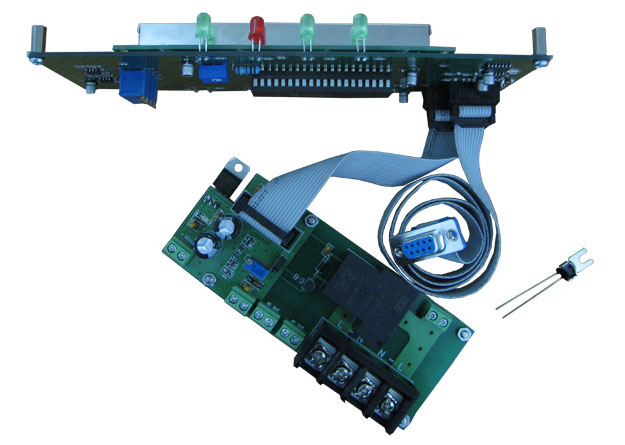

LCD-5000 Manufacturer: RF Application Co., Ltd.
Product Name: FM Monitor 5000 W
Model # : LCD-5000
Price:
$178.00

Data Sheet   User Guide Download
Product Features
Frequency range 85 ‐ 110 MHz Digital Voltage meter
Forward measurement up to 5000 Watts Set target Forward, Reflect, Power input
Digital Forward and Reflected Power Meter Alarm and protection control
Digital SWR meter Build in external voltage control
Digital Temperature meter Large LCD display
 Technical Specifications  Physical and Environmental Specifications
 Measurement Frequency Range   85 ‐ 110 MHz    Operating Temperature  ‐10°C to +50°C (+14°F to +122°F)
 Forward power measurement range  5000 watts    Storage Temperature  ‐40°C to +80°C (‐40°F to +176°F)
 Reflect power measurement range  100 watts    DC input requirement  12VDC@300mA
 SWR measurement range  1.0 – 9.9    Dimension  20.0 X 12 X 5 cm. (W x L x H)
 Voltage measurement range  0 – 55 volt    Weight  0.4 Kg.
 Temperature measurement range  0 – 50 Celsius

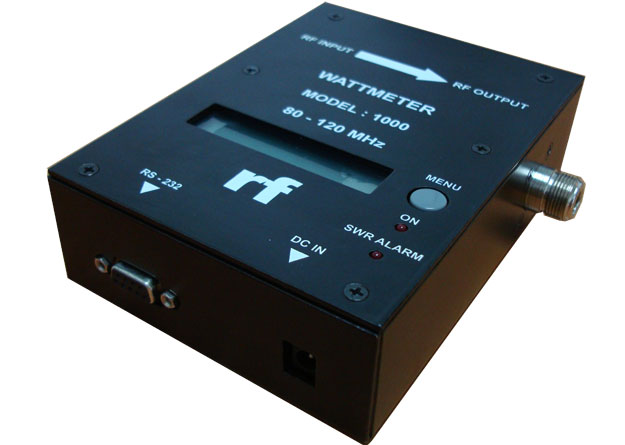

DWT-1000 Manufacturer: RF Application Co., Ltd.
Product Name: Watt Meter 1000 W
Model # : DWT-1000
Price:
$196.00

Data Sheet   User Guide Download
Product Features
Wide dynamic range (80 MHz - 120 MHz) Alarms high SWR and low voltage
Direct connection to PC Teflon laminated directional coupler
Digital Forward and Reflected Power Meter Forward Power Measurement Range 1 W - 1000 W
Digital SWR meter
 Technical Specifications  Physical and Environmental Specifications
 Frequency Range   85 ‐ 110 MHz    Operating Temperature  10°C to +50°C (+14°F to +122°F)
 Forward Power Measurement Range  1 W ‐ 1500 W    Storage Temperature  ‐40°C to +80°C (‐40°F to +176°F)
 Reflect Power Measurement Range  1 W ‐ 100 W    DC input requirement  12VDC@300mA
 SWR Measurement Range  1.0 – 9.9    Dimension  14.5X 4 X 10.5 cm. (W x H x D)
 Impedance  50 ohm (nominal)    without connector
 Input Connector  N Female    Weight  0.4Kg. maximum
 Output Connector  N Female
DWT-1000 Manufacturer: RF Application Co., Ltd.
Product Name: Watt Meter 1500 W
Model # : DWT-1500
Price:
$232.00

Data Sheet   User Guide Download
Product Features
Wide dynamic range (80 MHz - 120 MHz) Alarms high SWR and low voltage
Direct connection to PC Teflon laminated directional coupler
Digital Forward and Reflected Power Meter Forward Power Measurement Range 1 W - 1500 W
Digital SWR meter
 Technical Specifications  Physical and Environmental Specifications
 Frequency Range   85 ‐ 110 MHz    Operating Temperature  10°C to +50°C (+14°F to +122°F)
 Forward Power Measurement Range  1 W ‐ 1500 W    Storage Temperature  ‐40°C to +80°C (‐40°F to +176°F)
 Reflect Power Measurement Range  1 W ‐ 100 W    DC input requirement  12VDC@300mA
 SWR Measurement Range  1.0 – 9.9    Dimension  14.5X 4 X 10.5 cm. (W x H x D)
 Impedance  50 ohm (nominal)    without connector
 Input Connector  N Female    Weight  0.4Kg. maximum
 Output Connector  N Female
