The Low Pass Filter designed for FM radio transmitter. This low pass filter builds on Teflon laminate and micros strip technology to enhance ruggedness reliability. This is the new generation of low cost, high reliable and high efficiency and work with FM pallet/FM amplifier for professional use with outstanding performances.

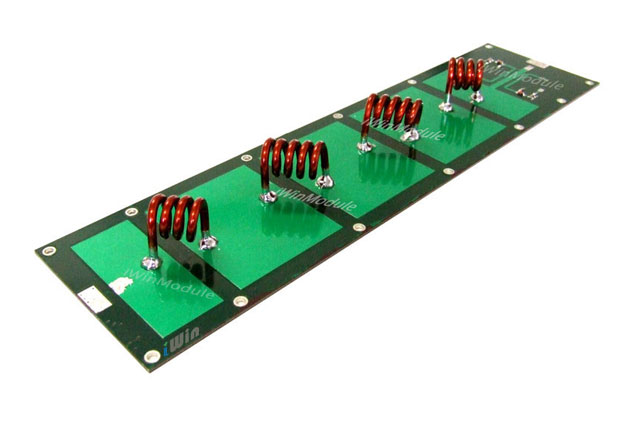

LPF1500-FM LPF2000-FM Manufacturer: iWin Product Name: Low Pass Filter 1500 W Model # : LPF1500-FM Price: $125.00     Data Sheet       Product Features Frequency range 87.5 - 108 MHz Build in directional coupler Input/Output impedance 50 Ohm #8 awg inductors Teflon laminate <-60 dB harmonic rejection Power rating 1500 Watts <-25 dB return loss (typical)  Technical Specifications  Physical Specifications  Power rating  1500 W    Dimension  300 X 76 X 30 mm. (L x W x H)  Input/Output impedance  50 ohm    Weight  0.2 Kg.  Frequency Range  87.5 ÷ 108 MHz        Return loss  <-25 dB        Harmonic rejection  <-60 dB       Manufacturer: iWin Product Name: Low Pass Filter 2000 W Model # : LPF2000-FM Price: $178.00     Data Sheet       Product Features Frequency range 87.5 - 108 MHz Gold plate technology Input/Output impedance 50 Ohm Silver inductors Teflon laminate <-60 dB harmonic rejection Power rating 2000 Watts <-25 dB return loss (typical) Build in directional coupler      Technical Specifications  Physical Specifications  Power rating  2000 W    Dimension  188 X 90 X 30 mm. (L x W x H)  Input/Output impedance  50 ohm    Weight  0.2 Kg.  Frequency Range  87.5 ÷ 108 MHz        Return loss  <-25 dB        Harmonic rejection  <-60 dB
