FM Amplifier Modules (Low Power)

The Low FM amplifier designed for FM radio transmitter (< 1000 watts). This Amplifier incorporates micro strip technology and MOSFET transistor to enhance ruggedness reliability. FM amplifier module completed with heat sink, splitter, combiner, directional coupler and low pass filter. This product requires forced air cooling.

All FM Amplifier Modules (Low Power) Models

  • AB700-FM

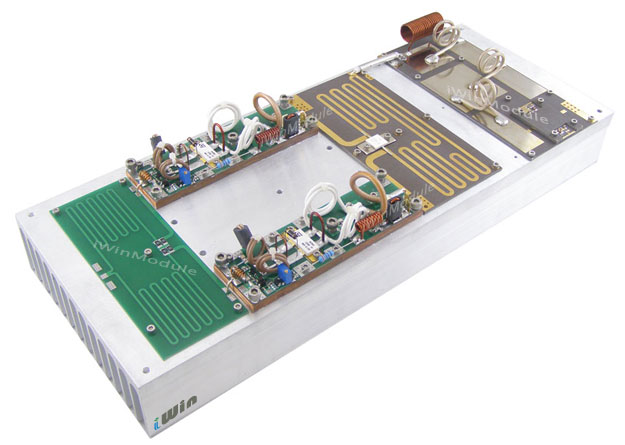

AB700-FM Manufacturer: iWin
Product Name: FM Amplifier Module700 W
Model # : AB700-FM
Data Sheet
Product Features
Frequency range 87.5 - 108 MHz Build in low pass filter
Input/Output impedance 50 Ohm Build in directional coupler
Gain 18 dB Wilkinson splitter & combiner
DC 48 Volts MOSFET SD2942 x 2
Output 700 Watts
 Technical Specifications  Physical Specifications
 Power output  700 W    Dimension  458 X 190 X 115 mm. (L x W x H)
 Input/Output impedance  50 ohm    Weight  6.6 Kg.
 Gain  18 dB (typical)
 Power input  12 watts type
 Frequency Range  87.5 ÷ 108 MHz
 Efficiency  75% type (@700 watts)
 Power requirement  22A@48V (typical 700W)
