FM Directional Coupler

The Directional Coupler made from copper conductor and aluminum box. It’s suitable for power measurement or signal measurement. This directional coupler provides a 50 dBc RF signal at the forward and reflected ports to all band. The maximum power rating up to 2000 watts.

All FM Directional Coupler

DCP-80175/M DCP-80175/N
  • DCP-80175/M
  • DCP-80175/N

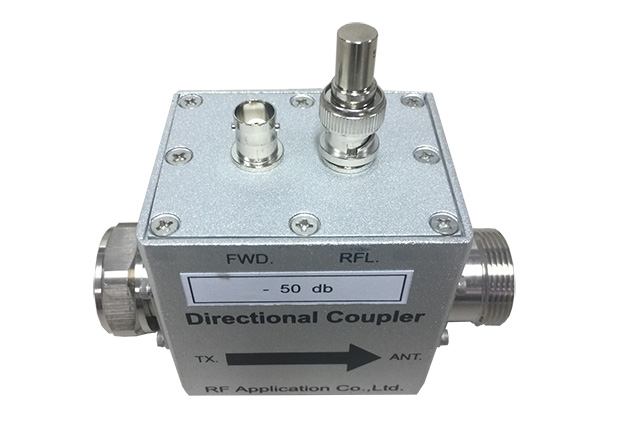

DCP-80175/N Manufacturer: RF Application Co., Ltd.
Product Name: Directional Coupler DCP-80175/M
Model # : DCP-80175/M
Price:
$143.00

Data Sheet
Product Features
Coverage, 85 to 170 MHz Coupling average 50 dB
Power rating up to 2000 W Useable to 70 to 200 MHz
 Technical Specifications  Physical and Environmental Specifications
 Frequency Range  85-170 MHz    Operating Temperature  0°C to +60°C
 Power Rating  2000 W (Max)    Storage Temperature  -10°C to +70°C
 Impedance  50 ohm (nominal)    Dimension  55x115x105 mm. (W x L x H)
 Coupling  BNC femail, 50 ohm    Weight  0.42 Kg.
 Second Harmonic  7/16 male for Input port
  7/16 Female for Output port

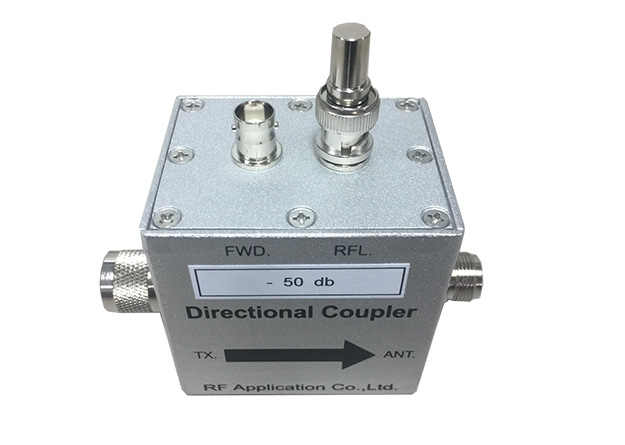

DCP-80175/N Manufacturer: RF Application Co., Ltd.
Product Name: Directional Coupler DCP-80175/N
Model # : DCP-80175/N
Price:
$107.00

Data Sheet
Product Features
Coverage, 85 to 170 MHz Coupling average 50 dB
Power rating up to 800 W Useable to 70 to 200 MHz
 Technical Specifications  Physical and Environmental Specifications
 Frequency Range  85-170 MHz    Operating Temperature  0°C to +60°C
 Power Rating  800 W (Max)    Storage Temperature  -10°C to +70°C
 Impedance  50 ohm (nominal)    Dimension  55x115x105 mm. (W x L x H)
 Coupling  BNC female, 50 ohm    Weight  0.32 Kg.
 Second Harmonic  N male for Input port
 N Female for Output port
